Plant Engineering

/

Customized Design

Based on your individual requirements and goals, we develop a tailor-made solution for your company. Depending on site conditions, the shredding solution can be planned either as a complete system or as separate machine components to meet structural circumstances. Our experienced engineering and sales staff will guide you through the project at any time in order to identify possible sources of error in advance and thus achieve the best possible result.

We offer plant engineering solutions for the processing of:

  • waste wood, logs, stumps, green waste, railway sleepers, pallets, cable drums
  • domestic waste, industrial & commercial waste, bulky waste, construction waste
  • car bodies, aluminum engine blocks, mixed scrap, scrap metal

Separation & Sorting

The proper separation of different types of materials is an important step in the recycling process. In order to achieve a homogeneous and clean final product, impurities must be removed from the pre-crushed material in downstream processes. In addition, there are more sources of value such as metals, which can then be further processed or sold.

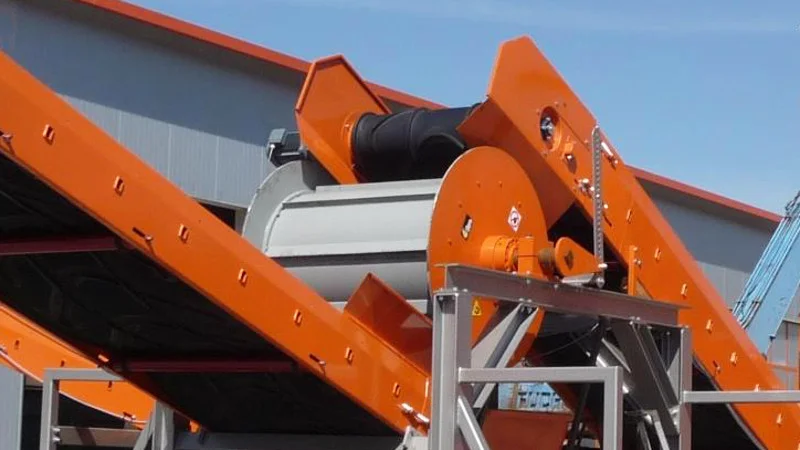

For the extraction of metal-containing material you can integrate magnet stations (drum magnet, overband magnet) into the system. The powerful magnetic cores are able to create a high deposition rate of ferrous materials. Non-ferrous metals can be separated from the conveying stream by an eddy current. In this case, many permanent magnets are arranged on a fast-rotating deflection roller, which in turn generates a high frequency magnetic field. With this, the induced currents in the non-ferrous metals counteract their origin and thus push off these material parts.

Sorting cabins offer the option of manual cleanup and inspection of the material. These can be equipped with appropriate heating and air conditioning systems and are suitable for installation inside and outside of corporate facilities.

Screening Technology

For the classification of pre-shredded material ARJES offers a wide range of screening techniques. All parameters such as quantity and size of screen decks, throughput and separation distance are designed to customer specifications. Depending on the material and the desired fraction size different screen geometries (star screen, roller screen, disk screen, etc.) can be used. By using individually exchangeable screen segments the solution guarantees a low maintenance level.

Material Handling

The optimum material flow is crucial for the proper functioning of the complete plant. To ensure that your material always arrives at the right place, we provide you with numerous conveyor systems and variants. Dosing hoppers, conveyor belts, vibrating conveyors, screw conveyors, etc. are combined in an intelligent way by our modular system and guarantee an economical process flow.
